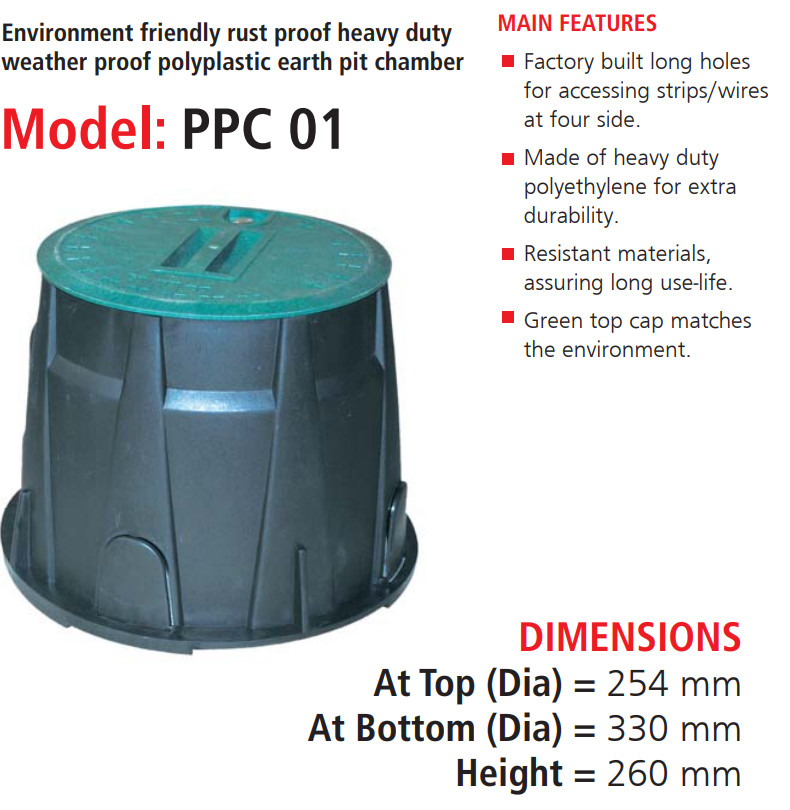

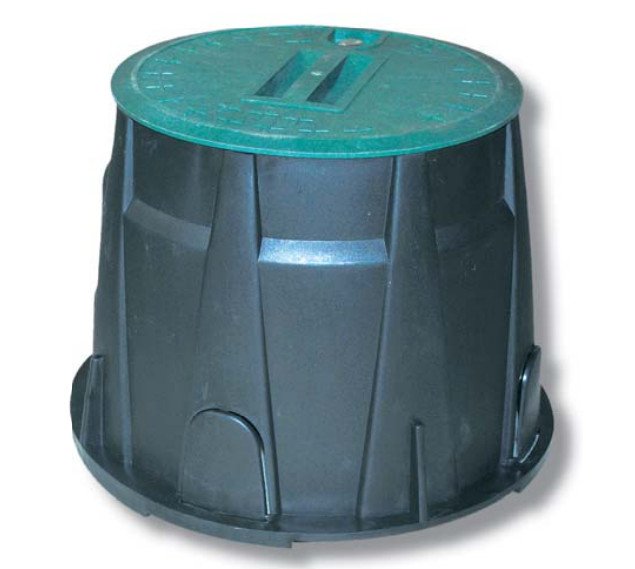

Earth Pit Chamber
The unique design of the lightweight, heavy-duty earth pit chamber results in superior performance compared to the traditional concrete pit, all at a comparable cost. Crafted from a high-performance polymer, this chamber is both UV stable and resistant to chemicals. Despite being only one-tenth the weight of a conventional concrete pit, it boasts an impressive load rating of 5,000 kgs or more. With a lockable lid and an enhanced working area compared to concrete inspection pits, it offers practical advantages. Moreover, its design features ensure easy storage, reduced transportation costs, straightforward installation, and convenient subsequent inspection and testing of the earth electrode system. This translates into significant practical benefits for both installers and customers alike.
- Lightweight Construction: The earth pit is only one-tenth the weight of a 30 kg concrete pit.
- High Load-Bearing Capacity: Boasting a safe working load of 5,000 kgs or more, surpassing traditional concrete pits.
- Lockable Jam-Free Lid: Once installed, the lid can be securely locked to prevent tampering with the earth electrode. The design also prevents debris from becoming jammed between the lid and the surrounding structure.
- Unbreakable Material: The high-performance polymer is much less brittle than concrete, minimizing the risk of wastage due to breakages.
- Stackable Design: Resistant to various substances, including petrol, oil, diesel, bitumen, and concrete.
- UV Stability: Incorporates a UV additive to minimize the effects of direct sunlight.
- Wide Temperature Applications: Capable of withstanding a broad range of temperatures.
- Improved Working Area: Offers a larger working area with enhanced access, simplifying both initial installation and subsequent inspections.
- Rod Placement Area: Ensures the central positioning of the Earth Rod, simplifying earth clamp connections.
- Screw Retention Facility: Features stainless steel, rustproof screws that can be securely snapped into the lid, preventing loss during storage or on-site.
- Optional Earth Bar Facility: Allows for the insertion of an earth bar in the pit, facilitating multiple connections to the earth rod.
- Quality Assurance: Fully compliant with manufacturing quality standards.
