Lighting Protection - Multi Point​

Multi Point

Thank you for reading this post, don't forget to subscribe!

Multi-point lighting protection systems are essential components of modern structures, designed to safeguard against the destructive forces of lightning strikes. These systems employ a network of interconnected rods or air terminals strategically placed atop buildings, towers, or other elevated structures. The primary objective of multi-point protection is to create a preferred path for lightning discharge, thereby diverting electrical currents away from critical infrastructure and preventing damage or injury.The design of a multi-point lighting protection system typically involves the installation of multiple air terminals distributed across the structure’s surface area. These terminals serve as lightning rods, attracting electrical charges from the atmosphere and providing a low-resistance path for the lightning strike to follow. By dispersing the strikes over several points, rather than concentrating them in a single location, the system minimizes the risk of structural damage and electrical surges.

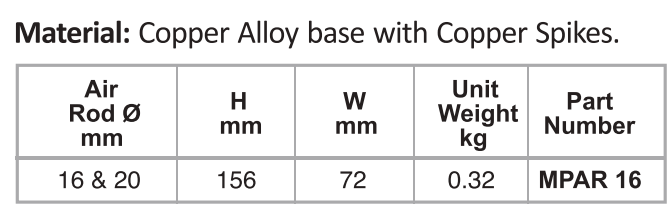

Multi Point
multi point
multi point

Key components of a multi-point lighting protection system may include

  1. Air Terminals: These are typically pointed rods or metal strips installed at various locations on the structure’s roof or highest points. Air terminals are designed to intercept lightning strikes and channel the electrical energy safely to the ground
  2.  Down Conductors: Conductive cables or rods connect the air terminals to the grounding system, facilitating the transfer of electrical currents downward. Down conductors are crucial for efficiently guiding lightning discharges away from the protected structure.
  3. Grounding System: A robust grounding network dissipates the electrical energy safely into the earth, preventing potential damage to the building and its occupants. Ground rods, plates, or grids are buried underground and connected to the down conductors, providing a low-resistance path for the lightning-induced currents.
  4. Surge Protection Devices (SPDs): These devices are installed within the electrical distribution system to mitigate transient voltage spikes caused by lightning strikes. SPDs safeguard sensitive equipment and electronics from damage, ensuring uninterrupted operations during and after a lightning event.
multi point
Multi-point lighting protection systems are meticulously engineered to adhere to industry standards and regulations, considering factors such as the structure’s size, location, and susceptibility to lightning strikes. Regular inspections, maintenance, and testing are essential to ensure the continued effectiveness of the system and provide peace of mind for occupants and stakeholders. By employing a comprehensive multi-point approach, structures can mitigate the potentially devastating consequences of lightning strikes and maintain operational resilience in the face of nature’s fury.
