Earthing - Earth Inspection Housing pit

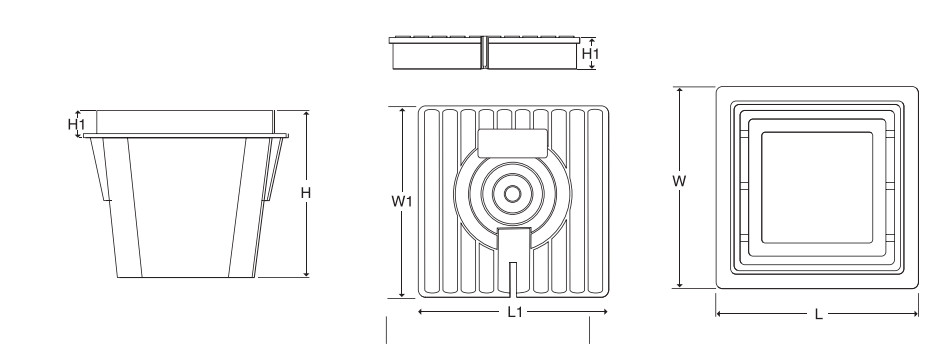

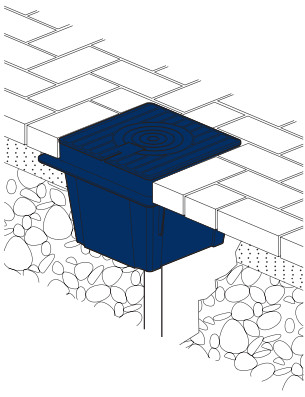

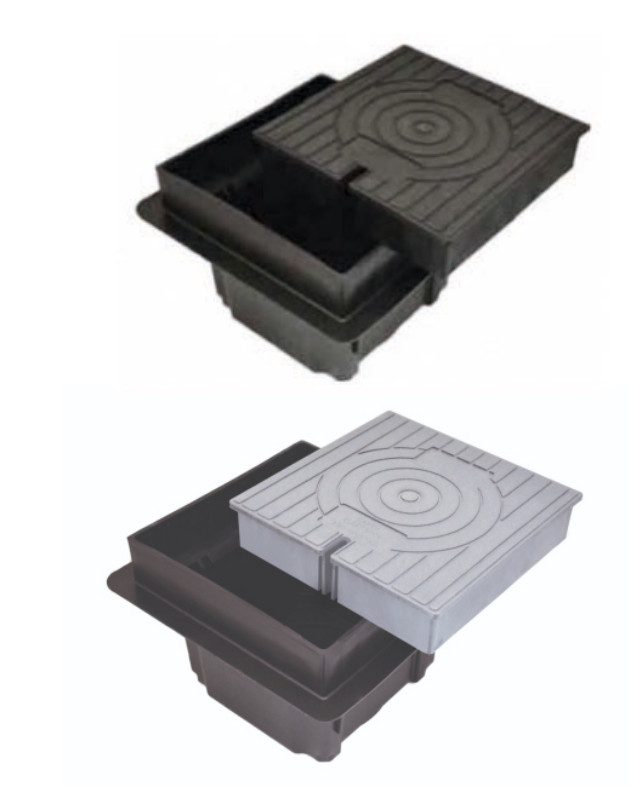

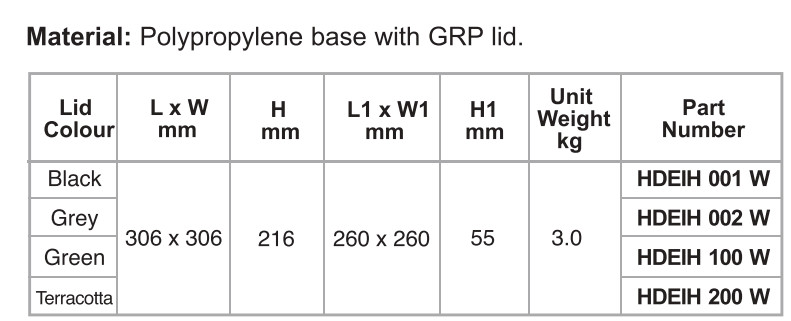

Earth Inspection Housing pit (heavy Duty)

The Earth Inspection Housing Pit (Heavy Duty) is a robust and durable solution designed for secure and efficient earth electrode systems. This heavy-duty pit is constructed from high-performance materials, making it significantly lighter than traditional concrete pits, while offering exceptional load-bearing capacity with a safe working load of 5,000 kgs or more. The lockable, jam-free lid ensures tamper resistance, and its unique design prevents debris from becoming lodged during operation. Crafted from an unbreakable material, the pit minimizes the risk of breakages, reducing wastage. With a stackable design and resistance to various substances, including petrol, oil, diesel, bitumen, and concrete, it provides versatile and reliable functionality. The UV stability and wide temperature tolerance make it suitable for diverse environmental conditions. The improved working area simplifies both initial installation and subsequent inspections, and additional features such as a designated rod placement area, screw retention facility, and optional earth bar insertion further enhance its practicality. The Earth Inspection Housing Pit (Heavy Duty) is a quality-assured solution, fully compliant with manufacturing standards, ensuring a dependable and long-lasting earth electrode system.
Earth Inspection Housing Pit (heavy Duty)
Earth Inspection Housing Pit (heavy Duty)
Earth Inspection Housing Pit (heavy Duty)
Earth Inspection Housing Pit (heavy Duty)

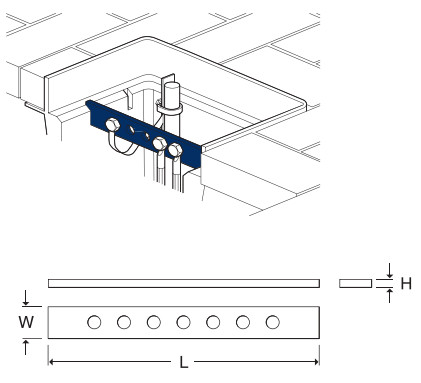

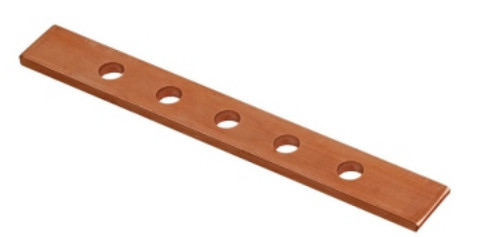

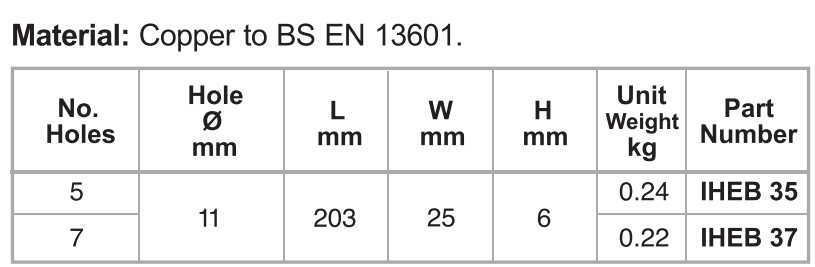

Inspection Housing Earth Bars (For Heavy Duty Earth Inspection Housing )

Inspection Housing Earth Bars, specifically designed for Heavy Duty Earth Inspection Housing, provide a robust and efficient solution for electrical grounding systems. These specialized earth bars are crafted to enhance the performance of heavy-duty inspection housings, ensuring reliable and secure connections to earth electrodes. With durable construction and high-quality materials, these earth bars offer a dependable means of facilitating multiple connections within the inspection housing. Whether for industrial or commercial applications, the Inspection Housing Earth Bars contribute to the integrity and efficiency of grounding systems, meeting the stringent requirements for heavy-duty earth inspection needs.

Thank you for reading this post, don't forget to subscribe!

Inspection Earth bars  are used to Facilitate testing of the Earth Electrode or Earthing  System. The Earth Bar can be fitted into Slots, to provide for multiple Conductor Connections. For Installing lighting earthing System Applications, we recommend The use Of Copper  Earth Electrode System Applications, we Recommend The  use Of copper earth Electrode  Systems due  to Their Inherent Low Resistivity  and corrosion Resistance

Earth Inspection Housing Pit (heavy Duty)
Earth Inspection Housing Pit (heavy Duty)
Earth Inspection Housing Pit (heavy Duty)
